Having set up a team who are always involved in the product R&D,Shenzhen Yaoertai Technological Development CO., LTD. keeps developing products on a regular basis. Our Elevator Door Photocell Sensor 180 Degree Rotation Battery Yet610b is launched to all customers from different fields. Compared with other similar Guangdong, China products in the market, Remote control it can be very stable and long-lasting when applied in the field(s) of Automatic Door Operators. Following scientific and advanced production standards, we have successfully made Elevator Door Photocell Sensor 180 Degree Rotation Battery Yet610b excellent in its performance. Through multiple times of tests, the Remote control is proved to be of great and so on. Before its launch, it has passed the certifications of several international and national authorities.
| Warranty: | 1 Year | After-sale Service: | Online technical support |
| Project Solution Capability: | total solution for projects | Application: | Garage & Shed |
| Design Style: | Modern | Place of Origin: | Guangdong, China |
| Brand Name: | YET | Model Number: | YET610B |
| Key Words: | long distance sensor | package: | plastic bag/paper box , customized |
| Working current: | ≤12mA | working distance: | 20 meters |
| Dimension: | 108*35*30 MM | Certificate: | RoHS, & CE |
| use range: | door opener,auto gate , garage door , roller shutter gate etc. | Theory: | Current Sensor |
| Output: | Switching Transducer | Amplifier Type: | Water Resistant |

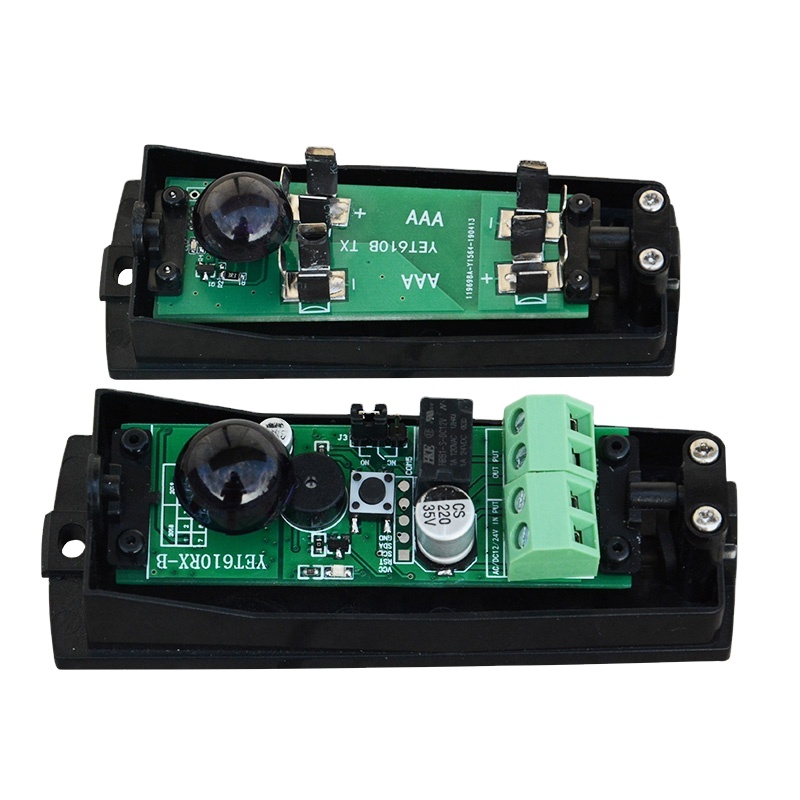

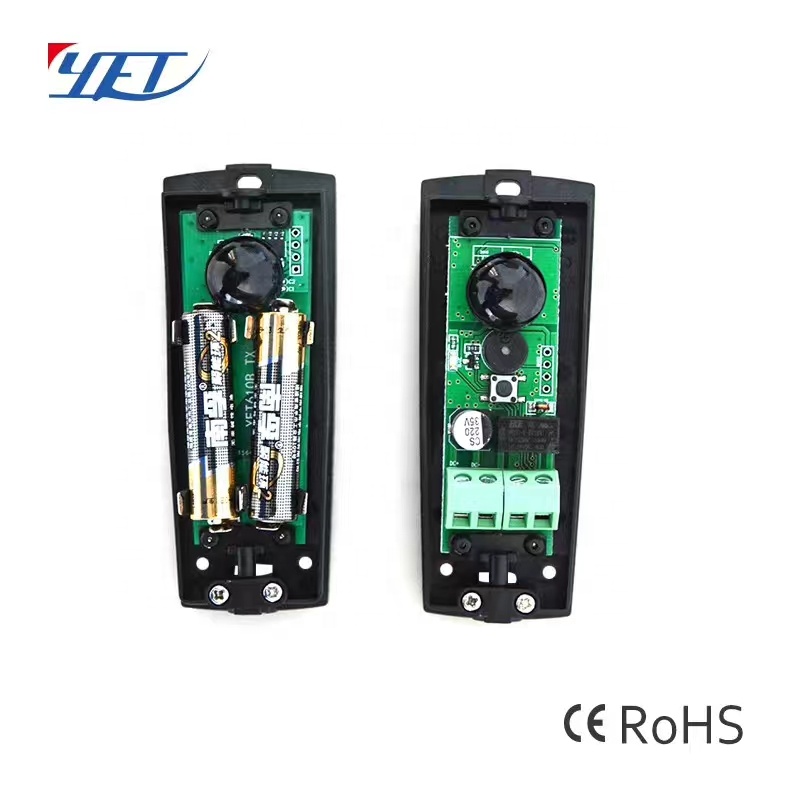

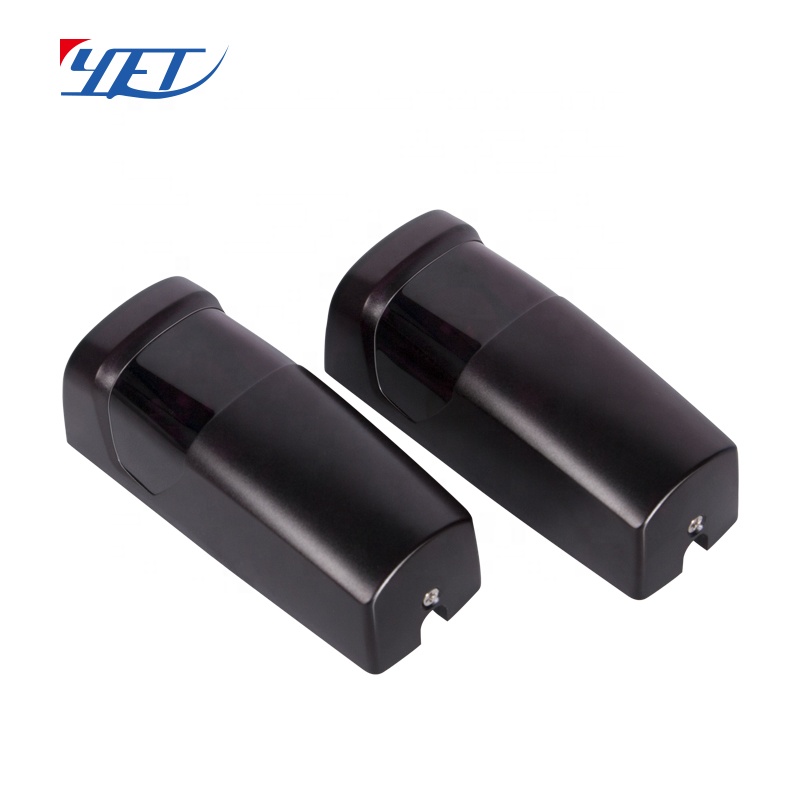

Elevator Door Photocell Sensor 180 Degree Rotation Battery Yet610b

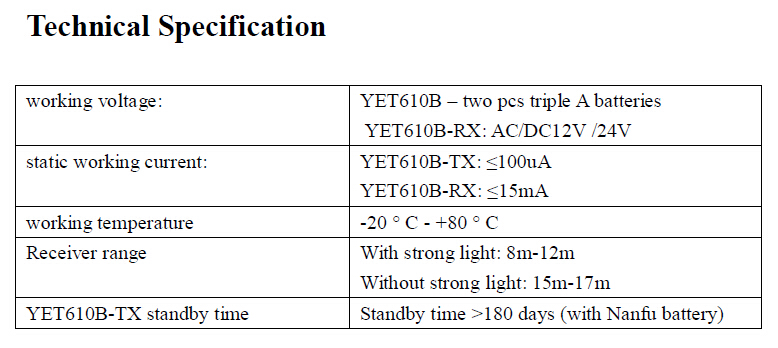

Spec.

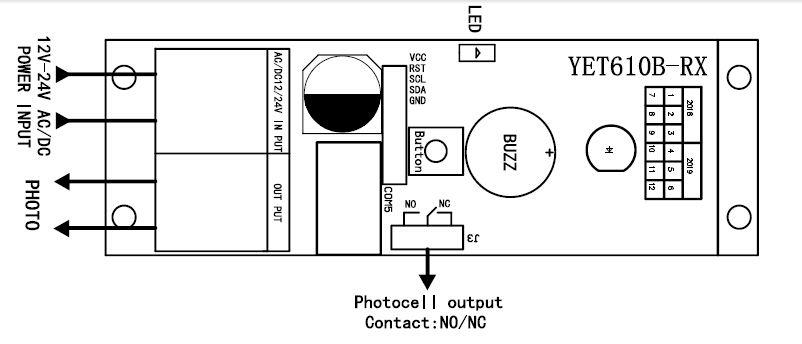

II. Operating mode
YET610B-TX: It can be used after installed the battery. After power-on, the LED flashes 3 times to indicate it is working. YET610B-RX: Operating mode 1. YET610B-RX does not receive YET610B-TX signal, the LED flashes, and the relay is disconnected.
2. YET610B-RX receives the signal from YET610B-TX, the LED is off, and the relay is connected. 3. When YET610B-TX is in the low voltage state, and YET610B-RX has not received the signal for 3 hours, YET610B-RX's buzzer will always send a "bleep" to prompt the battery to be replaced. Installation mode: 1. When the button is pressed for 1s, the buzzer will emit "bleep-bleep". After the LED is keep on, YET610B-RX enters the installation mode. 2. Press the button again for 1s, the buzzer will send out "bleep-bleep-bleep-bleep" and YET610B-RX will exit the installation mode. 3. In the installation mode, when YET610B-RX receives the signal from YET610B-TX, the LED off; when YET610B-RX does not receive the signal from YET610B-TX, the LED is keep on; the maximum time in the installation mode is 2 minutes.
III. Safety Instruction
1. For security, please read the user manual carefully before initial operation;
2. This photocell is without any fuse,so please make sure the power is off before installation;
3. Only used this system that do not cause any danger life or property during the running failure or its security risks eliminated;
4. Please guarantee the products used in effective working range.

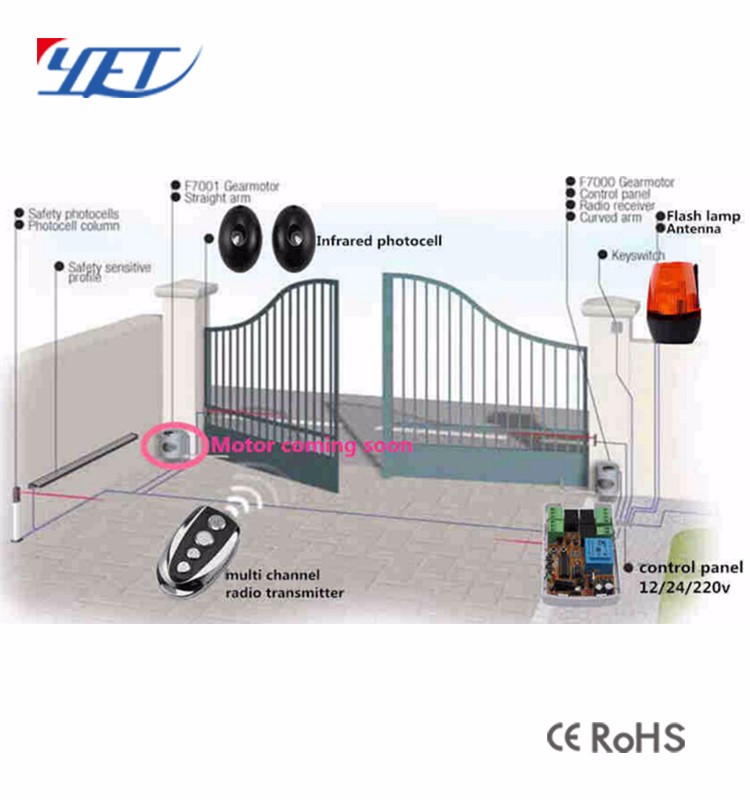

Usage Situation :
If you want to learn other items , please click enter our shop :
Shenzhen YET Technology Development Co.,Ltd
jessica's contact information :
skype : jessica19860918
QQ: 2355570560
Mobile:86-18124156086
Our company website: www.szyet.com
Packaging for photocell :

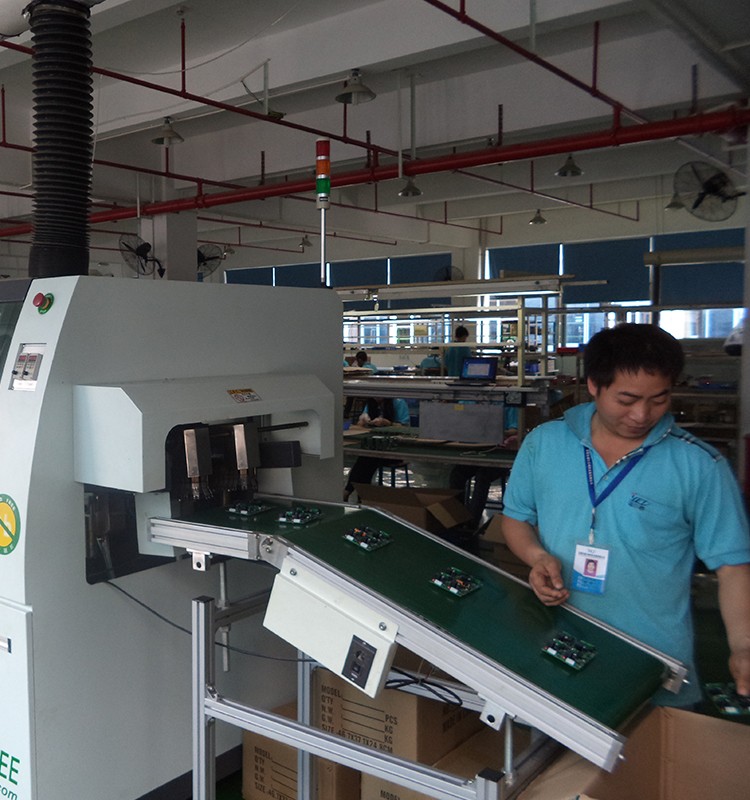

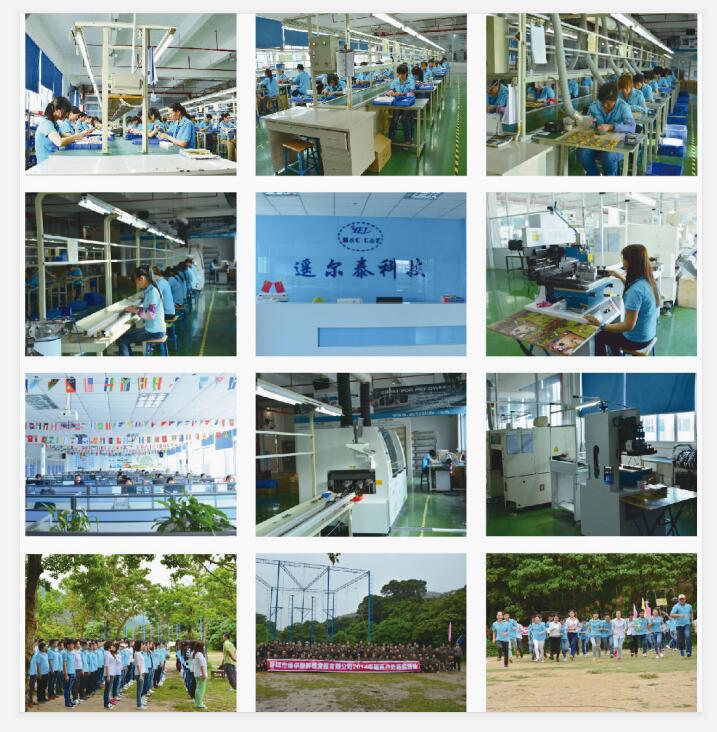

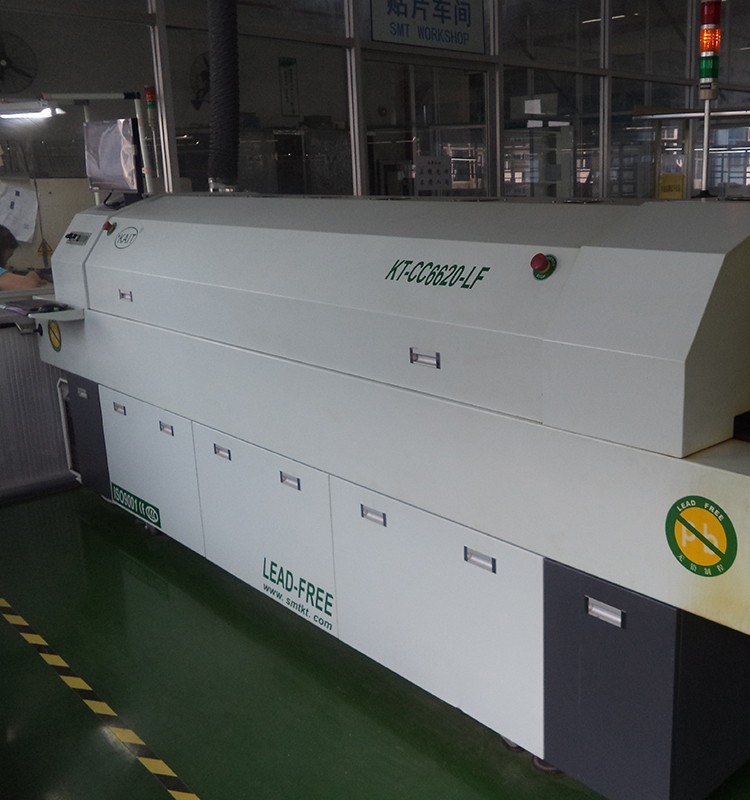

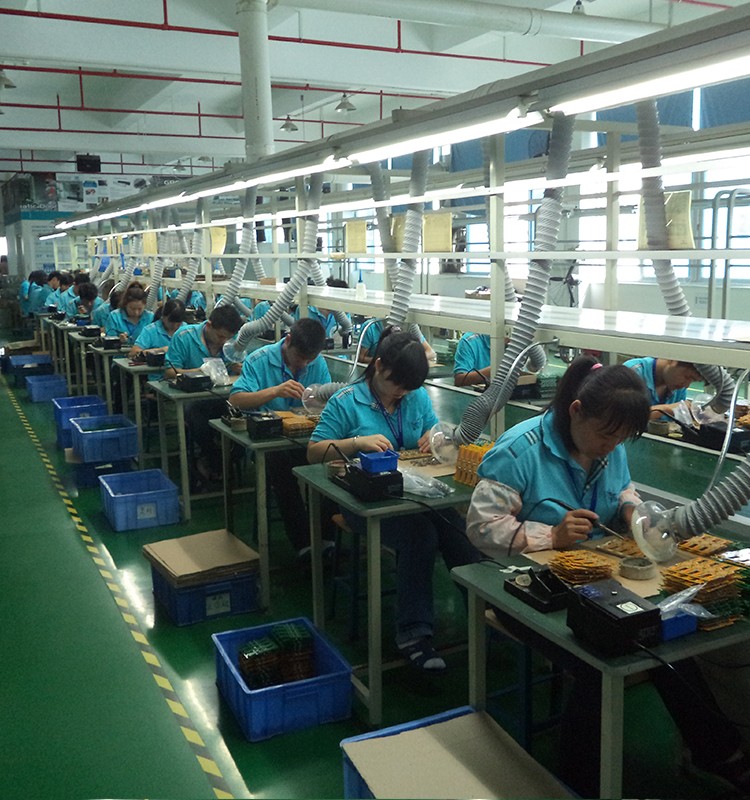

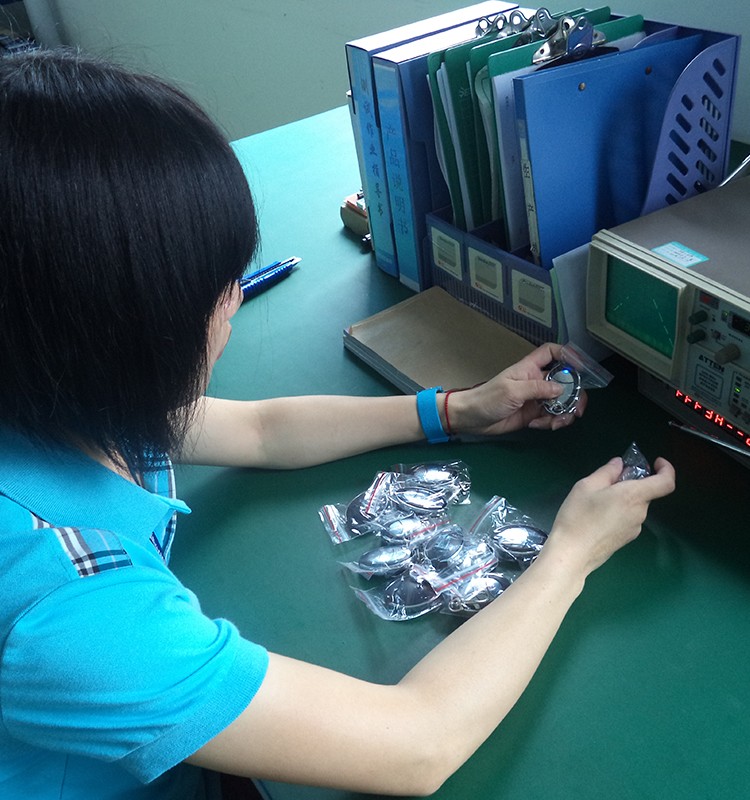

Our workshop :
