WIFI controller

After years of development, Shenzhen Yaoertai Technological Development CO., LTD. has gained strong capabilities in production and R&D, which allows us to develop new products to keep close up with industry development. Compared with other similar products in the market, Remote control it can be very stable and long-lasting when applied in the field(s) of Zigbee Modules. Thanks to our creative designers, has the appearance which is designed to catch up with the latest industry trend. Adopting reliable raw materials which have passed the tests of our QC inspectors, Smart Home Wireless 4G Multi Channel Gsm Zigbe Gateway Router YET6950 has some reliable performance.

Model Number:YET6950WFZBCountry of Origin:Shenzhen, China
Product name:Smart Home Wireless 4G Multi Channel Gsm Zigbe Gateway Router YET6950Communication Protocol:ZigBee
Supply Voltage:DC9VMCU:Industrial ZigBee Platform
Working frequency:2.4GHZ~2.5GHZProduct advantages:Work as router
Support:FSKType:ZigBee Zigbee Transmitter

Product Overviews

Smart Home Wireless 4G Multi Channel Gsm Zigbe Gateway Router YET6950



  • The product is equipped with proprietary APP software for remote/short-range configuration and manipulation of each node device;

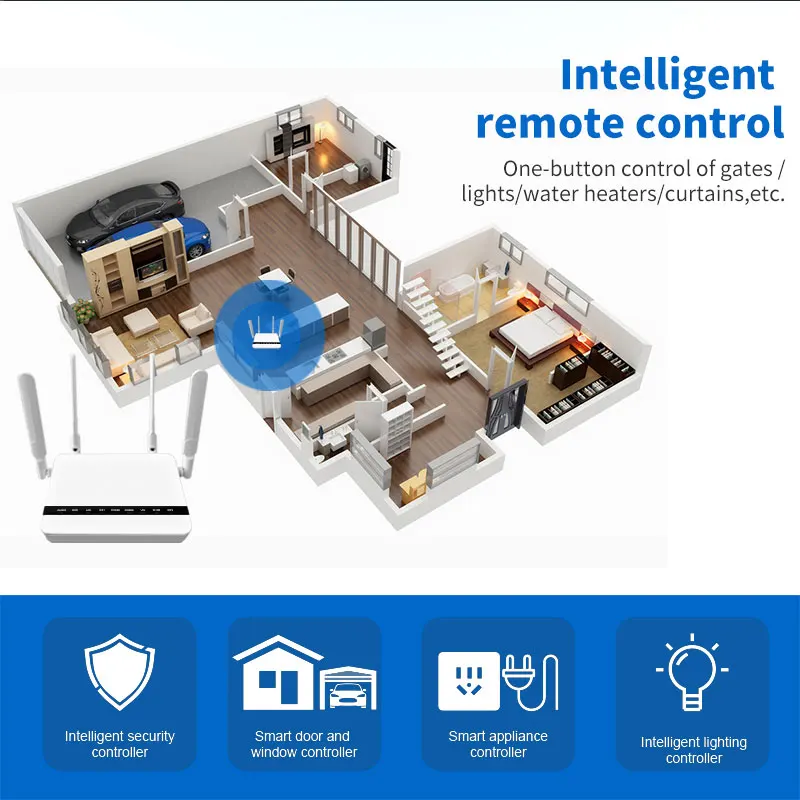

  • This product is mainly used in personal home life, office space and other smart office applications in business offices.
  • The product has a router function, accessing the external network through the WLAN port, and supporting wired Internet access through the LAN port;
  • Support WPS wifi one-key configuration ,to make access to the network more convenient;
  • Support automatic networking after disconnected network and so on.


System configuration:


 System kernel

 CPU: 32-bit 580MHz MIPS® 24KEc™  / Antenna: 2T2R WIFI(IEEE 802.11n)
 FLASH  SPI Flash 32M Bytes
 DRAM  16b DDR2 / 128M Bytes
 Wireless standards  IEEE 802.11b/g/n ,  IEEE 802.15.4
 Working frequency  2.4GHz ~2.5GHz(2412MHz ~2467.5MHz) / 433.92MHZ
 Encryption Type  WEP64 /128, TKIP, AES, WAPI
 Security mechanism  WPA / WPA2

Wireless receive sensitivity

 802.11b: -91 dbm (11 Mbps)

 802.11g: -75 dbm (54 Mbps)

 433MHZ : -94 dbm

 Electrical data:
 Input voltage  DC9V / @2A – DC12V / @1A
 Working current  ≤350mA @12V
 Standby current  ≤150mA @12V
 Working enviroment  temperature:-10 ~ +60
 Humidity:≤ 95%
 Storage enviroment  temperature:-20 ~ +80
 Humidity:≤ 95%
 RF remote control code  Use 301code remote control
 Can add the remote control number  1pc(max)
Related Products


Packing & Delivery E

Delivery way:

We are ship goods by DHL, Fedex, UPS, TNT at usual. If you prefer others shipment way, we also can ship them to you as your requirement.

Delivery time:

Sample: 3-5 working days.

Bulk order: 7-20 working days.


Company Information








Q1.Could I order one piece for sample to test the quality?
Yes, sample is available


Q2.What should I know before ordering?
Please let me know the frequency (433.92 is the most common frequency), code (fixed code EV1527, rolling code HCS301 or duplicator). And please also let me know the quantity, our MOQ is 100pcs.


Q3.Are you a manufacturer?
Yes, we have our own factory, production line, SMT&Plug-in,automatically screw driver machine etc and R&D department.


Q4.Can I visit your factory?
Yes,welcome.Our address: 5th and 6th floor block 27,lianchuang Technical zone , Bu Lan road, long gang district, Shenzhen , R.P. China


Q5.What about your delivery time?
For samples, 3~5 working days, for bulk order, 7~20 working days.


Q6.Do you accept OEM order?
Yes. We customized a lot of items for our clients.


Q7.What kind of payment do you accept?
We accept T/T(Wire transfer),Western Union and PayPal, Credit card.
TT can be 30% prepayment before production, 70% balance payment before shipping.


 Q8. Does all of your goods come with remote function?

Yes, our remote cotrol receiver distance is about 50-100 meters.


Q9.Do your products carry warranty?

Yes,6 month or more and permanent service.
